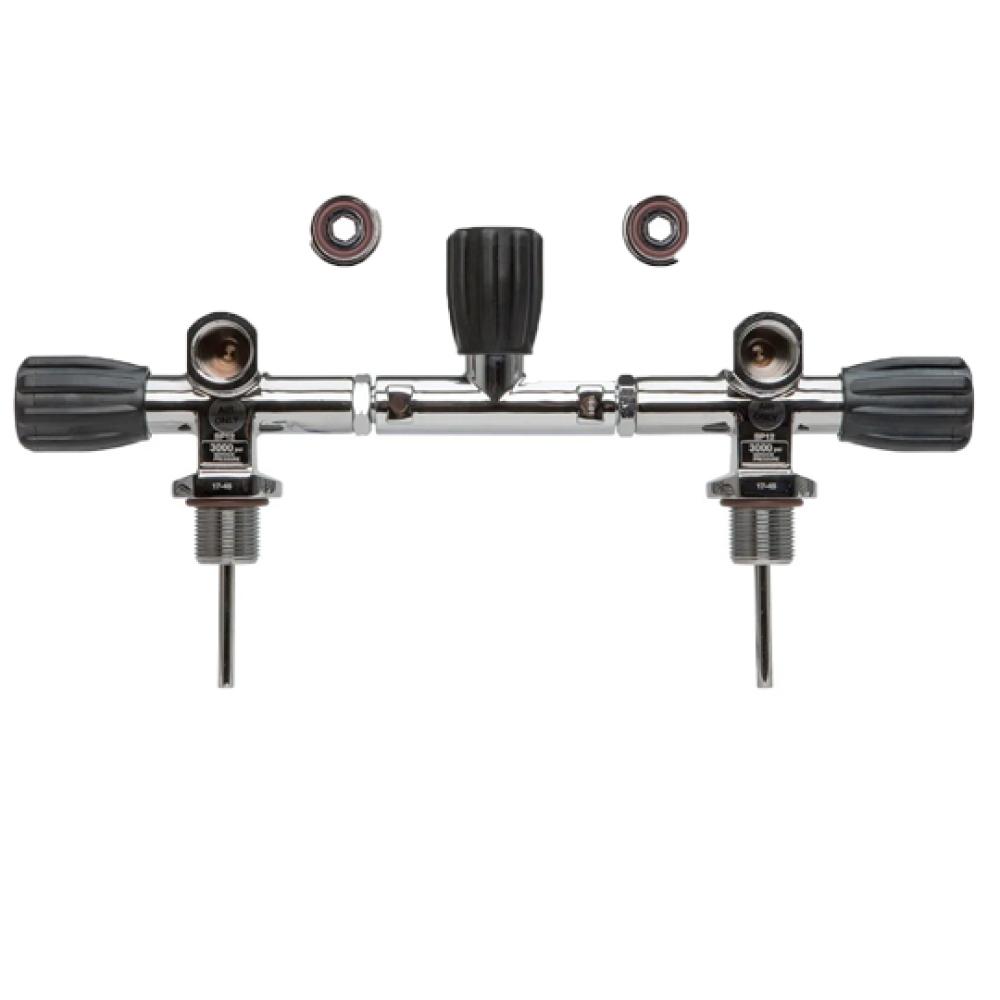

XS Scuba Thermo Isolation Manifold PRO (Convertible DIN / Yoke)

By XS Scuba / Thermo | Standard 215 mm Spacing | 3/4"-14 NPSM Inlets | Modular Single Tank Conversion Plugs Included

Build a rock-solid, high-performance double tank system with the XS Scuba Thermo Isolation Manifold - PRO. Precision engineered from heavy-duty marine-grade forged brass with triple-bright chrome plating, this technical isolation manifold delivers smooth gas management, exceptional flow, and ultimate durability for technical and recreational twinset diving.

Its versatile modular design allows you to run an isolation crossbar between two cylinders for doubles or utilize the included modular access port plugs to convert the left and right valves into two fully independent single tank valves. Equipped with convertible PRO outlets, the manifold accepts standard 230-bar DIN first stages or instantly converts to classic Yoke fittings via spin-out inserts.

Key Features and Performance Highlights

• Convertible PRO Outlets: Compatible directly with standard 230-bar DIN regulator connections or transforms into a standard Yoke valve using the included 200-bar spin-out insert.
• Modular System Design: Includes left and right access plugs so you can disassemble the isolator crossbar and use each valve on independent single cylinders.
• Standard 215 mm Spacing: 215 mm (8.46" ± 0.2") center-to-center distance matches standard twinset bands without binding or alignment strain.
• Smooth PTFE-Plated Operation: High-strength brass stem with nylon high-pressure seat and PTFE-impregnated threads ensures effortless handwheel operation under full cylinder pressure.
• Recessed Safety Burst Disk: One-piece safety burst disk assembly is deeply recessed within the solid brass body to prevent accidental damage during transport.
• Hex-Tighten Dip Tubes: Threaded brass dip tubes feature an integrated hex wrench slot for fast, positive seating and removal without scarring the tube walls.

Technical Specifications
