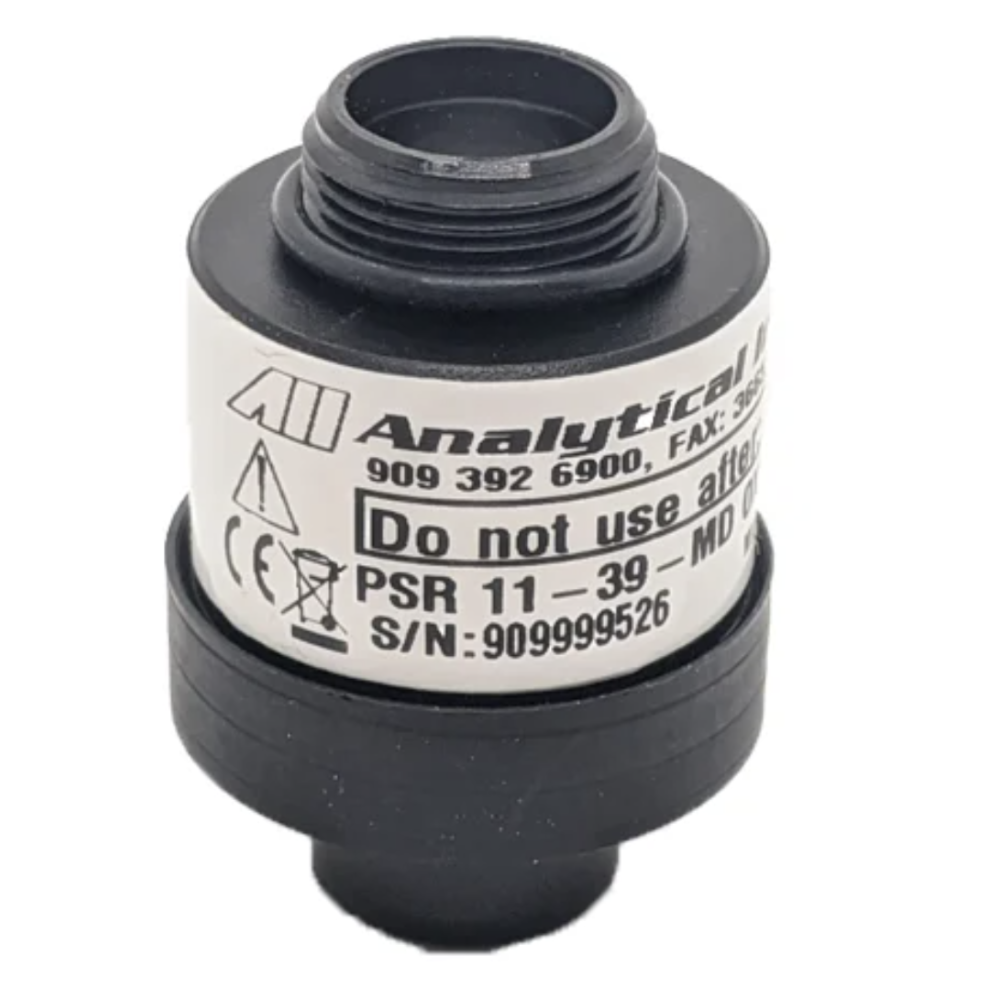

The Analytical Industries Inc. (Aii) PSR-11-39-MEG Oxygen Sensor is a specialized galvanic electrochemical ($PO_2$) cell custom-engineered for Innerspace Systems Corp (ISC) Megalodon CCRs and MEG Rebreathers. Designed with modified cap dimensions and a targeted output range, this sensor provides precise, reliable oxygen monitoring where standard off-the-shelf cells won't fit or perform accurately.
Rigorously Tested Quality Assurance
Analytical Industries manufactures all diving sensors in the USA under an ISO 9001:2015 certified quality management system. To guarantee life-support reliability underwater, every single PSR-11-39-MEG sensor undergoes rigorous factory testing prior to packaging:
- Dual Calibration Checks: Individually tested for output stability in ambient air (1 ATA) as well as 100% pure oxygen.
- Pressure Pot Validation: Subjected to a 30" water column pressure test (and verified up to 1.8 ATA PO?) to guarantee leak-free performance and linear signal output.
- Individual Test Certificate: Every sensor ships in a sealed gas-barrier bag accompanied by its unique dated factory pressure and test report.
Key Features and Benefits
- Megalodon & MEG Compatibility: Feature-engineered specifically for the tight cap clearances and head assemblies of the ISC Megalodon CCR.
- Optimized Output Voltage: Features a narrowed published signal output of 10.5 – 13.0 mV in air for rock-solid stability on MEG handsets and HUDs.
- 3-Pin Molex Connection: Standard 3-pin Molex plug with an M16 x 1mm thread for quick, plug-and-play installation.
- Hydrophobic & Temperature Compensated: Built with a hydrophobic membrane to resist condensation and internal temperature compensation for ambient water shifts.
- Machined Delrin Housing: Constructed with robust, high-durability Delrin cap materials.
Complete Technical Specifications
| Sensor Model / SKU | PSR-11-39-MEG |
| Target Application | ISC Megalodon CCR / MEG Rebreathers |
| Sensor Technology | Galvanic Electrochemical Cell |
| Measuring Range | 0 – 100% Oxygen ($O_2$) |
| Published Signal Output (in Air) | 10.5 – 13.0 mV (at 25°C, 1 atm) |
| Response Time ($T_{90}$) | 6 Seconds |
| Accuracy & Linearity | ±0.02 Full Scale | Linearity: 0.01 |
| Signal Drift | < 1% per Month |
| Connector & Thread Type | 3-Pin Molex | M16 x 1mm Thread |
| Housing Material | Delrin (Machined Polymer) |
| Operating Pressure & Flow Rate | Consistent 5 – 30 PSIG | 0.1 – 10 LPM |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity Range | 0 – 99% RH (Non-Condensing) |
| Expected Life / Shelf Life | 32 Months Expected Life | < 6 Months Shelf Life |
| Quality Certifications | CE Compliant | ISO 9001:2015 Certified Manufacturing |
| Factory Warranty | 12 Months (Ex-Factory) |
Usage & Storage Recommendations
Expected sensor lifespan varies inversely with changes in operating pressure, temperature, and $PO_2$ exposure. For optimum diving precision, calibrate with 95–100% $O_2$ when planning dives with gas mixtures above 40% $O_2$. Unopened sensors should be stored in a temperature-controlled environment between 0°C and 40°C.
