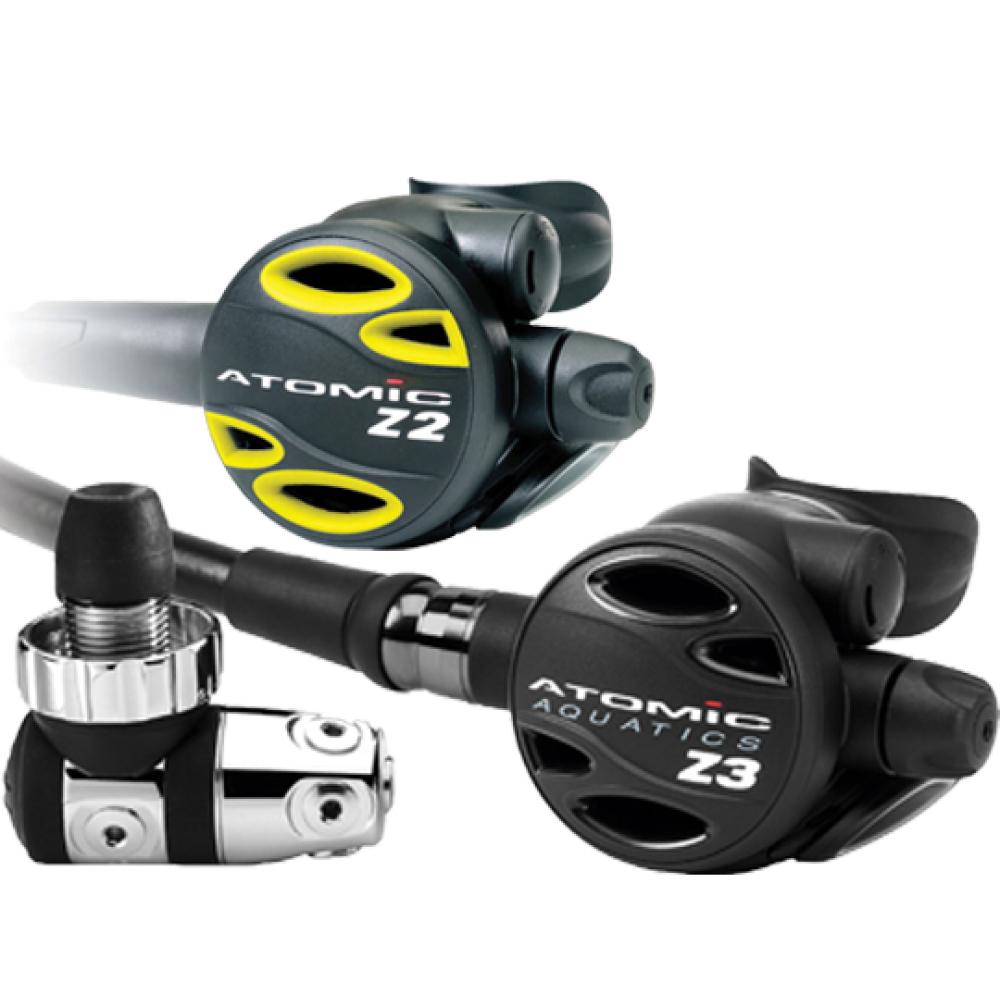

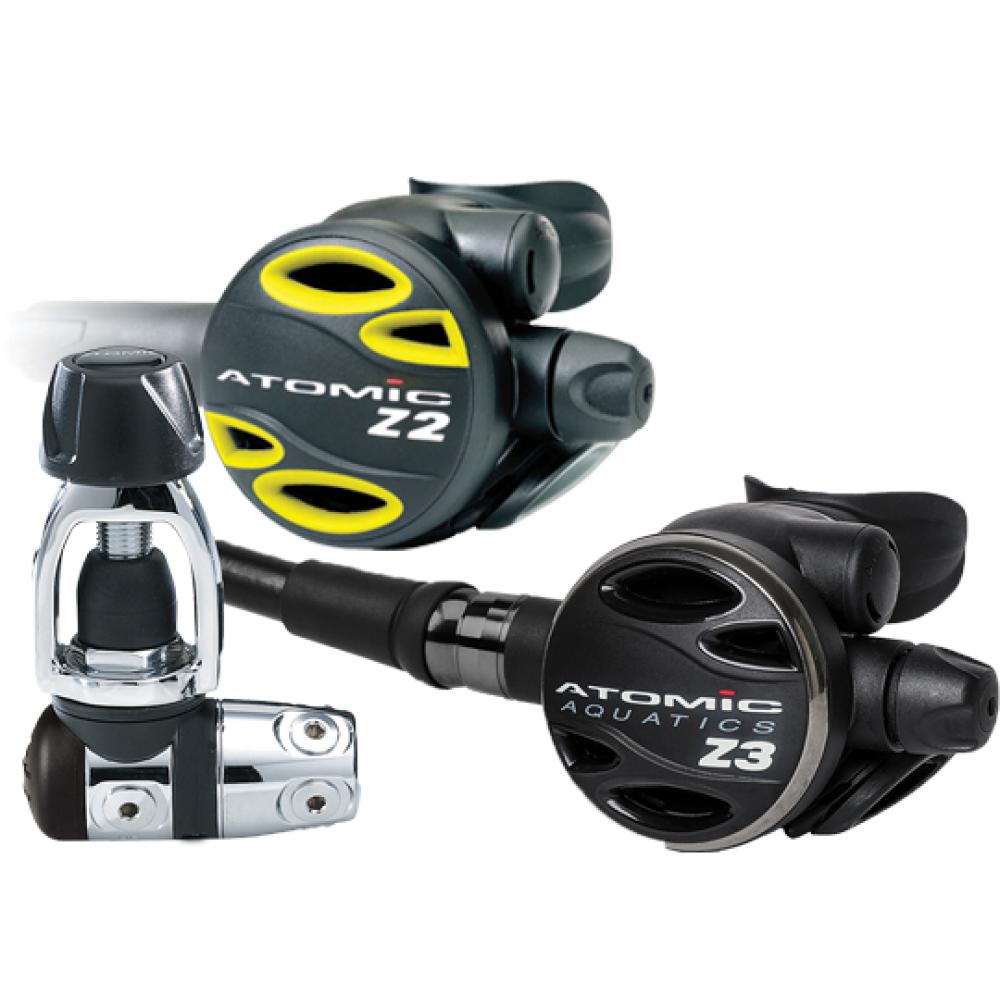

PREMIUM PERFORMANCE & CORROSION RESISTANCE: Engineered for divers who demand ultra-smooth breathing with maximum long-term durability. The Atomic Aquatics Z3 Regulator Kit pairs Atomic's legendary flow-through piston first stage with a feature-packed second stage equipped with titanium internal components and a patented comfort hose swivel.
The "Z" series stands for Zirconium—a multi-layer plating over chrome brass that provides three to four times the corrosion resistance of standard chrome plating. Combined with Atomic's patented Seat Saving Orifice and Automatic Flow Control (AFC), the Z3 delivers effortless air delivery at any depth without needing manual adjustments during your dive.
Key Features & Specs
- Zirconium-Plated Brass First Stage: Compact chrome-plated brass body with multi-layer Zirconium coating for exceptional corrosion resistance.
- Titanium Second Stage Components: Key internal second-stage parts are precision-machined from titanium for lightweight strength and zero rust.
- Patented Comfort Swivel Hose: High-spec 304 stainless steel hose swivel allows 30-degree rotation without binding, eliminating jaw fatigue.
- Automatic Flow Control (AFC): Automatically adjusts airflow based on depth to maintain consistent, natural breathing without flipping manual levers.
- Seat Saving Orifice: Patented orifice retracts off the rubber seat when unpressurized, drastically extending seat life and preventing free-flows during storage.
- High-Flow First Stage Ports: Configured with 2 High Pressure (HP) ports and 5 Low Pressure (LP) ports on a fixed cap for clean, streamlined hose routing.
- Nitrox Ready Out of the Box: Factory cleared for use with enriched air Nitrox mixes up to 40% O?.
Technical Specifications
| Feature | Specification |
|---|---|
| First Stage Type | Balanced Flow-Through Piston (Zirconium-Plated Chrome Brass) |
| Second Stage Type | Pneumatically Balanced with Titanium Lever & Orifice |
| Port Configuration | 5 Low Pressure (LP) Ports, 2 High Pressure (HP) Ports |
| Hose Type | Atomic Comfort Swivel Hose (304 Stainless Steel) |
| Breathing Controls | Automatic Flow Control (AFC) + Rapid Adjustment Knob |
| Service Interval | 2-Year or 300-Dive Service Interval |
| Gas Compatibility | Air & Nitrox up to 40% O? |
| Connection Type | Yoke / INT (230 Bar) or DIN (300 Bar) |
Frequently Asked Questions
Q: What makes the Zirconium plating on the Atomic Z3 special?
A: Zirconium plating over chrome-plated brass offers roughly three to four times the corrosion resistance of conventional chrome plating. It provides near-titanium levels of exterior protection at a more accessible price point.
Q: How does Atomic's Seat Saving Orifice work?
A: Standard regulator seats sit tightly against the orifice even when stored, causing permanent indents and premature wear over time. Atomic's patented design uses a pressure-activated orifice that retracts away from the seat when the regulator is depressurized, drastically extending service life and reliability.
Q: What is the benefit of Automatic Flow Control (AFC)?
A: AFC eliminates the need for a manual Venturi lever. It uses a dynamic internal foil that automatically adjusts airflow according to depth, delivering smooth, effortless breathing whether you are at 20 feet or 130 feet.
