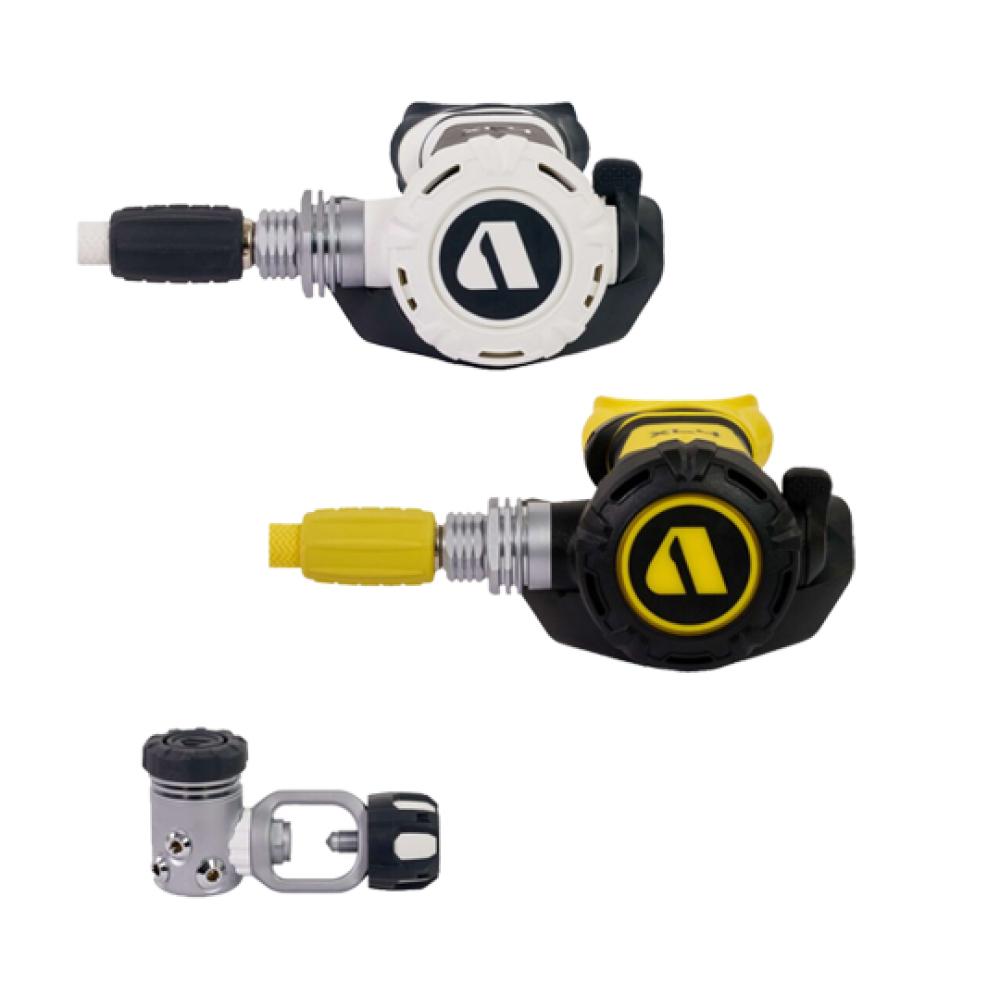

ULTRA-LIGHTWEIGHT COLD-WATER PERFORMANCE: Engineered for technical exploration, stage bottles, and travel divers who refuse to compromise on breathing quality. The Apeks XL4 Stage Regulator pairs a compact, environmentally sealed first stage with a lightweight, high-flow second stage designed to minimize jaw fatigue during long dives.
Built around Apeks' proven over-balanced diaphragm technology, the XL4 features an innovative end-cap design that seals the main spring cavity against ice formation and ambient debris. Its lightweight construction makes it an ideal choice for technical stage and decompression bottles, while its effortless breathing performance excels in cold-water exploration worldwide.
Key Features & Specs
- Compact Environmentally Sealed First Stage: Over-balanced diaphragm design with an innovative end-cap seal prevents ice buildup and protects internal components in freezing waters.

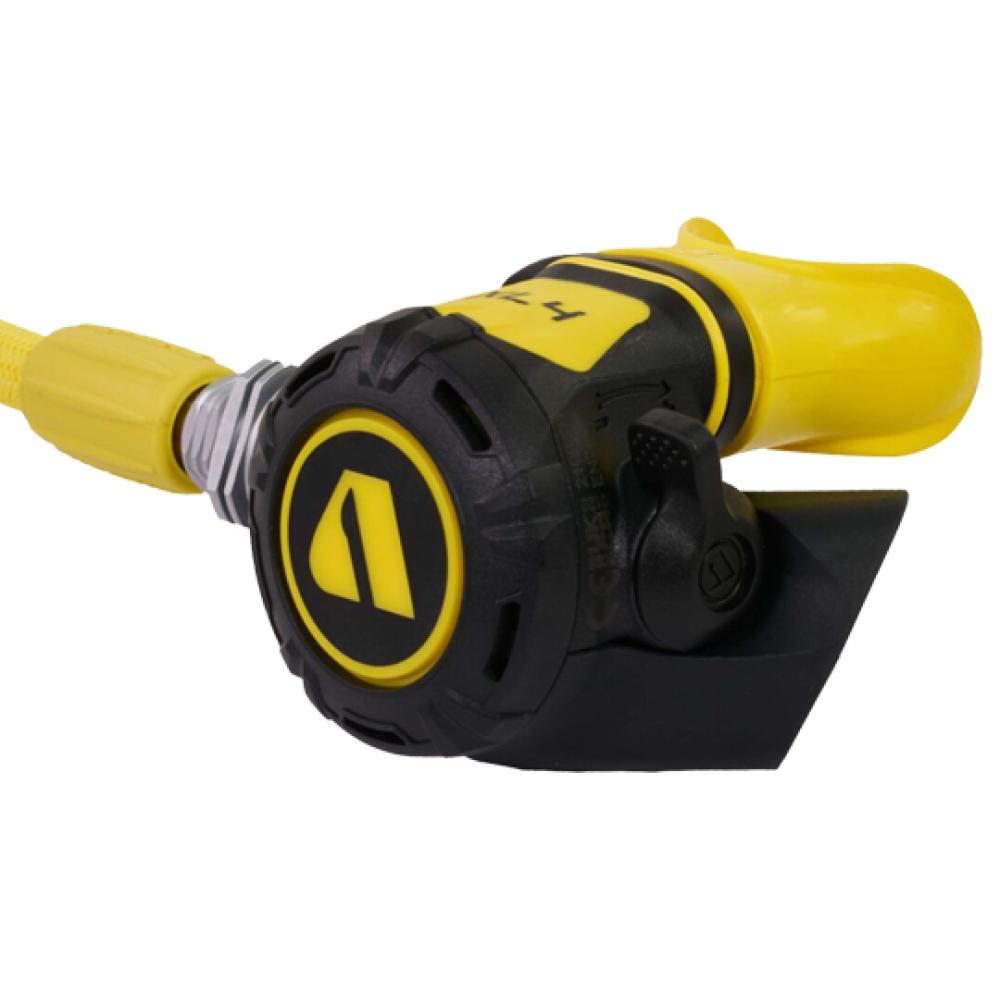

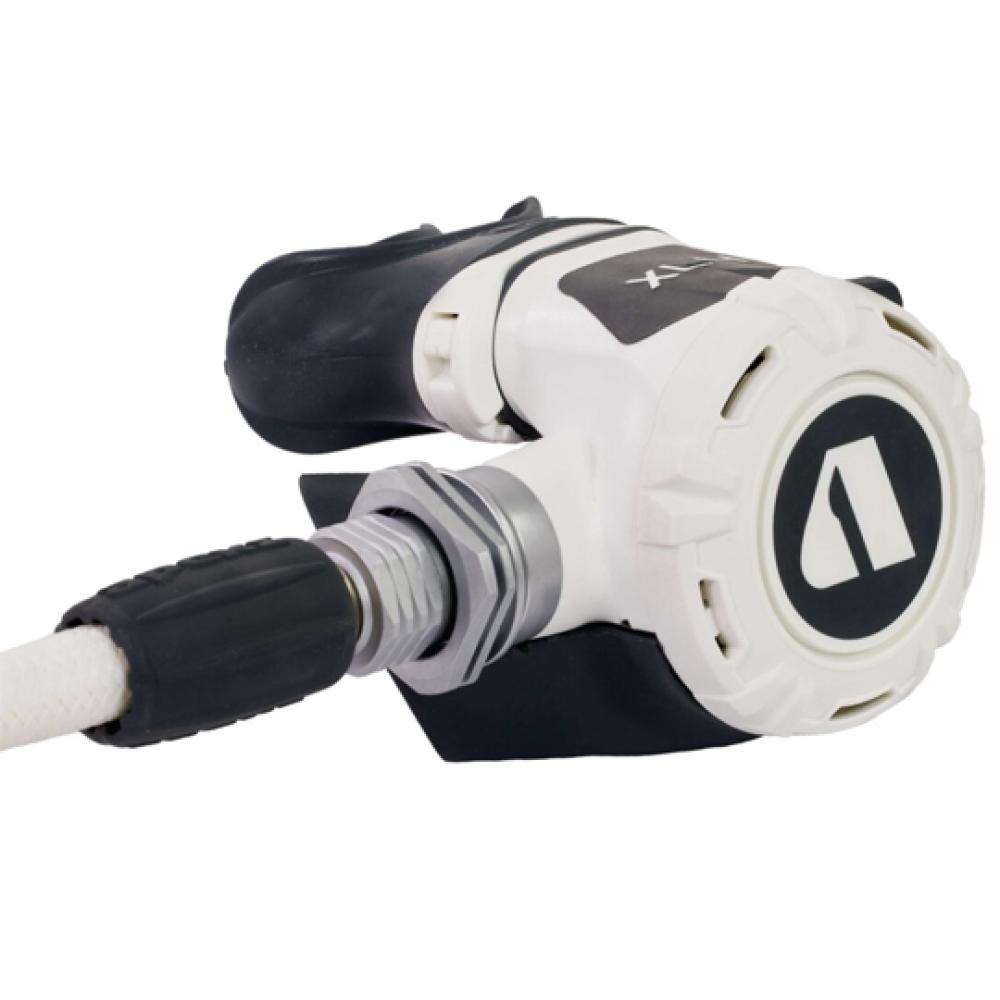

- Ultra-Lightweight Second Stage: High-impact, compact casing significantly reduces weight and jaw strain on extended decompression stops or multi-dive days.
- Over-Balanced Diaphragm System: Intermediate gas pressure increases faster than ambient pressure during descent, delivering peak breathing performance at extreme depths.
- Ergonomic Venturi Lever: Integrated, easy-grip Venturi switch allows quick adjustments between Dive and Pre-Dive modes to prevent surface free-flows.
- Flexible Metallic Nylon Braided Hose: Lightweight, highly durable braided hose offers superior flexibility and streamlined hose routing over standard rubber hoses.
- Comfo-Bite Mouthpiece: Patented bridge design sits comfortably across the upper palate without requiring firm teeth pressure, eliminating jaw fatigue.
- Cold-Water Certified: Tested and certified to EN250A standards for reliable performance in water temperatures below 10°C (50°F).
Technical Specifications
| Feature | Specification |
|---|---|
| First Stage Type | Over-Balanced Diaphragm (Environmentally Sealed) |
| Second Stage Type | Pneumatically Balanced (Lightweight Composite) |
| Port Configuration | 4 Low Pressure (LP) Ports, 1 High Pressure (HP) Port |
| Hose Type | Satin Black Metallic Braided Flex Hose |
| Mouthpiece | Apeks Comfo-Bite Mouthpiece (Reusable Clamp) |
| Cold Water Rating | Yes (EN250A Tested & Certified) |
| Gas Compatibility | Air & Nitrox up to 40% O? out of the box |
| Connection Type | DIN (300 Bar) or Yoke / INT (230 Bar) |
Frequently Asked Questions
Q: Why is the Apeks XL4 so popular for technical stage and decompression bottles?
A: The XL4 second stage is one of the lightest compact regulators on the market, making it easy to store on stage or deco cylinders without adding unnecessary weight. Combined with 4 LP ports and an environmentally sealed first stage, it provides exceptional reliability when switching to high-percentage O? or travel gas at depth.
Q: How does the environmental dry seal protect against cold-water freezing?
A: The dry seal isolates the main spring chamber from surrounding ambient water. By keeping water away from the internal spring and piston mechanisms, ice crystals cannot form—preventing cold-water free-flows in extreme conditions.
Q: Is the Apeks XL4 suitable as a primary recreational regulator?
A: Absolutely! While technical divers love it for stage bottles, its lightweight profile, extreme cold-water rating, and comfortable Comfo-Bite mouthpiece make it a fantastic choice for travel-minded recreational divers who want high-end Apeks performance.
