SKU: 204.2317 | Pressure Scale: 0–5000 PSI | Connection: 7/16"-20 High-Pressure Port
Free Shipping Available! Orders over $200 CAD at International Diving Centre ship free across Canada.

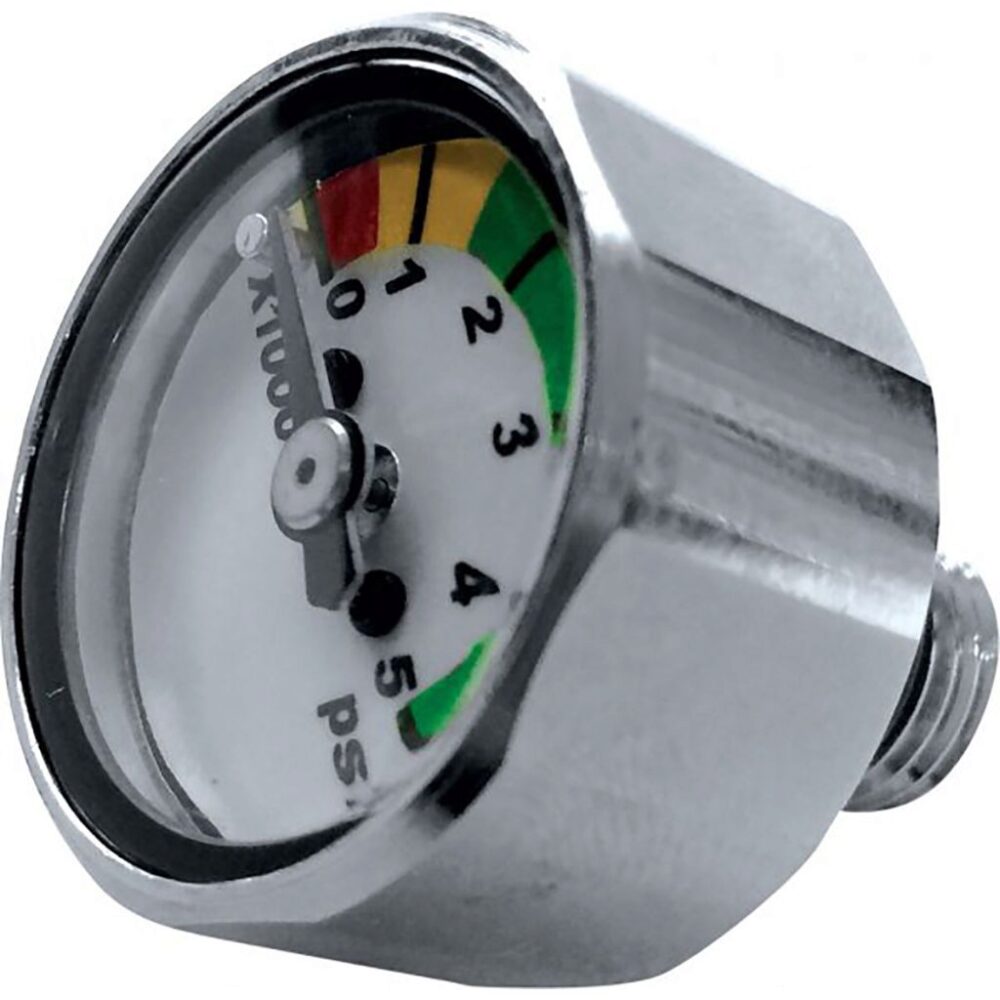

The LG Pony Bottle Gauge - PSI (SKU: 204.2317) is an ultra-compact "button" style Submersible Pressure Gauge (SPG) designed to thread directly into the high-pressure (HP) port of your stage or pony bottle regulator. By eliminating the need for a bulky HP hose, this streamlined gauge allows you to verify tank pressure at a glance without adding drag or entanglement hazards to your dive rig setup.
Key Features & Performance Highlights
- Ultra-Compact Profile: Direct-mount button design eliminates HP hose clutter for low-drag stage and backup cylinder configurations.
- Easy-to-Read Dial: High-contrast face marked in PSI increments up to 5000 PSI with color-coded warning reserves for quick gas checks.
- Corrosion-Resistant Construction: Heavy-duty chrome-plated brass body built to withstand harsh marine environments.
- Standard Threading: Threads cleanly into any standard 7/16"-20 UNF high-pressure regulator port.
Technical Specifications
| SKU / Part Number | 204.2317 |
| Pressure Range | 0 to 5,000 PSI |
| Thread Fitting | 7/16"-20 UNF Male (Standard HP Port) |
| Body Material | Chrome-Plated Solid Brass |
| Primary Application | Pony bottles, bailout cylinders, stage bottles, and argon inflator systems |
