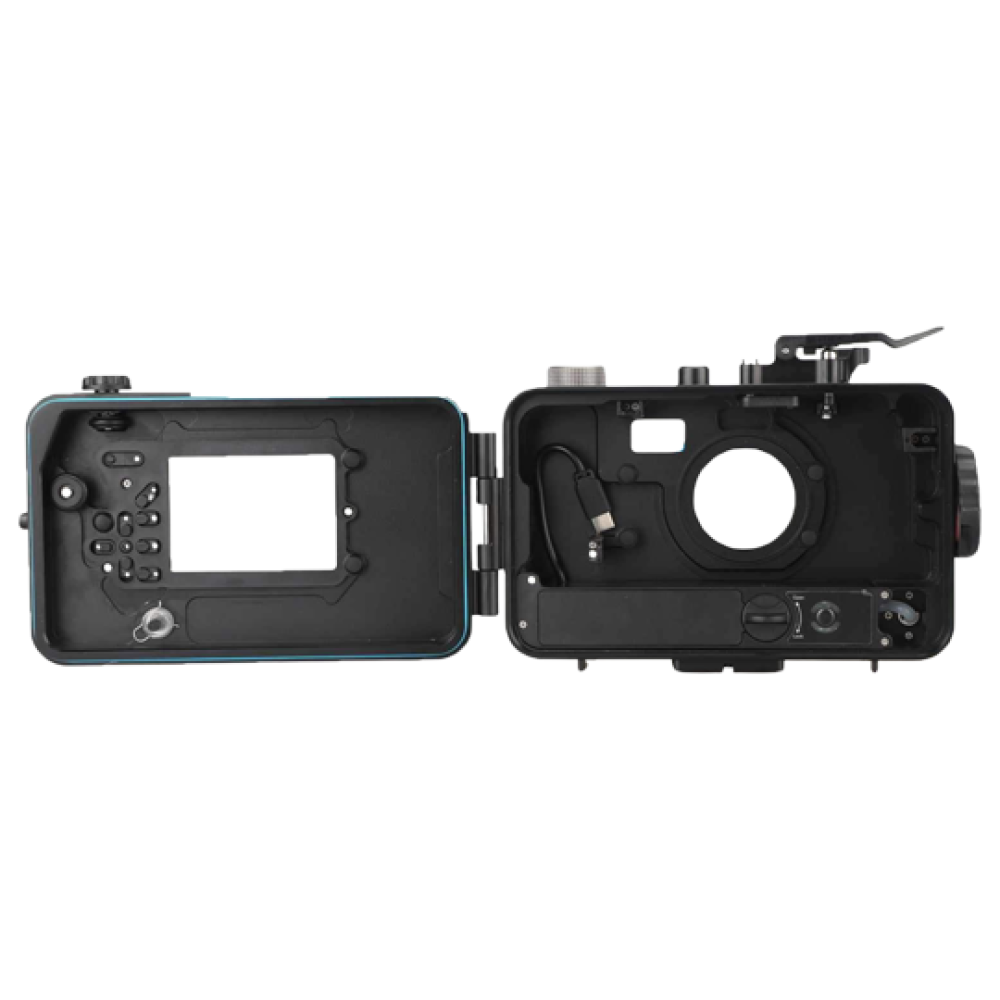

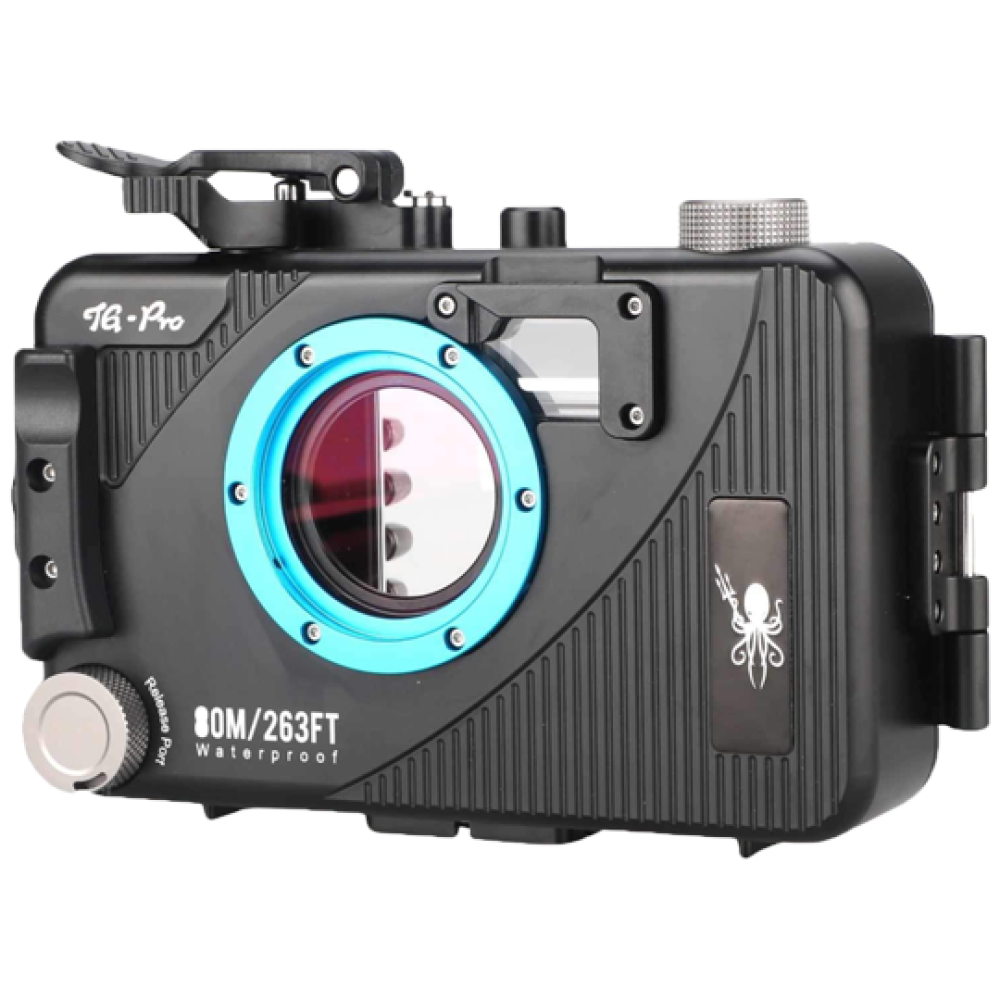

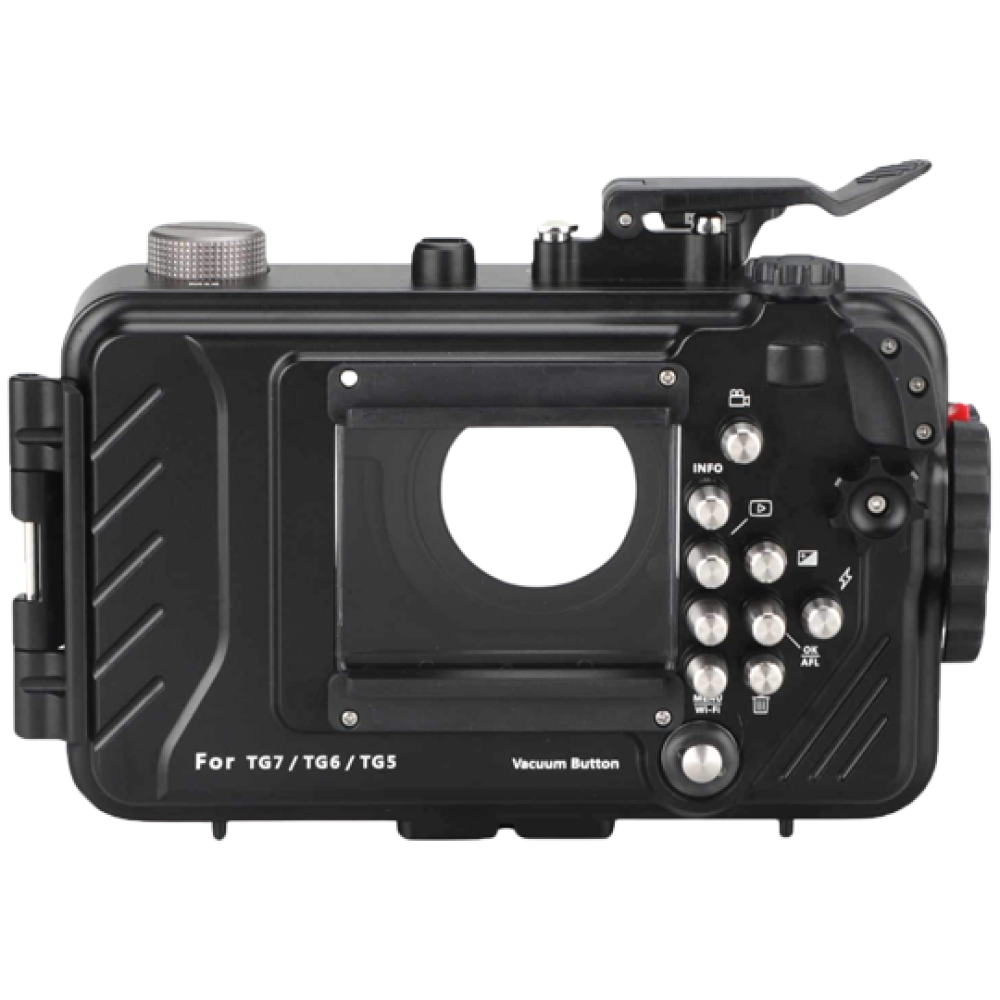

PROFESSIONAL ALUMINUM UNDERWATER HOUSING: Protect your camera and elevate your underwater macro photography with the ultimate setup for the OM System TG-7 and Olympus TG-6. The Kraken Sports Aluminum Housing (KRH-TGPRO) delivers rugged durability, full control access, and built-in electronic leak detection engineered specifically for serious divers.
Machined from high-grade anodized aluminum alloy, this housing extends your TG-6 or TG-7 depth limit to 80 meters (263 feet)—far beyond standard plastic housings. Featuring a built-in electronic vacuum pump system, M16 bulkhead, and direct in-housing camera charging via an included 18650 battery, the Kraken housing keeps your camera safe and fully powered across long multi-dive sessions.
Key Features & Specs
- Precision-Machined Hard Anodized Aluminum: Offers superior impact protection, thermal stability, and deep-water pressure resistance compared to polycarbonate cases.
- Integrated Electronic Vacuum Seal System: Test and verify your seal before stepping off the boat. A single button draws a vacuum and confirms leak integrity with a clear green status LED.
- In-Housing Camera Power Charging: Accommodates a high-capacity 18650 battery that charges your TG-6 or TG-7 while sealed inside, offering up to 6 additional hours of shooting time.
- Standard 52mm Threaded Port: Directly mount 52mm wet wide-angle or macro optics, or step up to 67mm lenses using step-up rings.
- Full Tactical Control Access: Precision laser-engraved buttons and levers provide easy operation—even while wearing thick cold-water dive gloves.
- Expansion Ready: Features an M16 bulkhead for external accessories or manual vacuum valves, plus dual fiber-optic cable ports for external strobe integration.
Technical Specifications
| Feature | Specification |
|---|---|
| Camera Compatibility | OM System TG-7, Olympus TG-6, and Olympus TG-5 |
| Depth Rating | 80 Meters / 263 Feet |
| Body Material | Hard-Anodized Aluminum Alloy & Hardened Glass |
| Port Threading | M52 x 0.75 (52mm Threaded Lens Port) |
| Bulkhead Interface | M16 x 0.75 Threaded Port |
| Leak Protection | Built-In Electronic Vacuum Pump System + LED Status Light |
| Battery System | 18650 Li-ion Battery (Powers vacuum & recharges camera) |
| Weight (Land / Underwater) | 1155g (Land with Camera & Battery) / ~300g (Underwater) |
Frequently Asked Questions
Q: How does the built-in vacuum system protect my camera against flooding?
A: Before entering the water, seal the housing and press the electronic vacuum button. The internal pump creates negative pressure, pulling air out of the housing. The LED indicator turns green to confirm the seal is airtight and safe for diving.
Q: Can I use macro and wide-angle wet lenses with this housing?
A: Yes! The housing includes a 52mm threaded lens port. You can screw on 52mm wet macro or wide-angle lenses directly, or use a 52mm-to-67mm step-up ring to attach standard 67mm wet optics.
Q: Do I need to remove my TG-7/TG-6 camera to charge it between dives?
A: No! The housing accepts a rechargeable 18650 battery that supplies internal power to charge the camera directly while it remains sealed inside. This keeps your seal intact during long multi-dive excursions.
